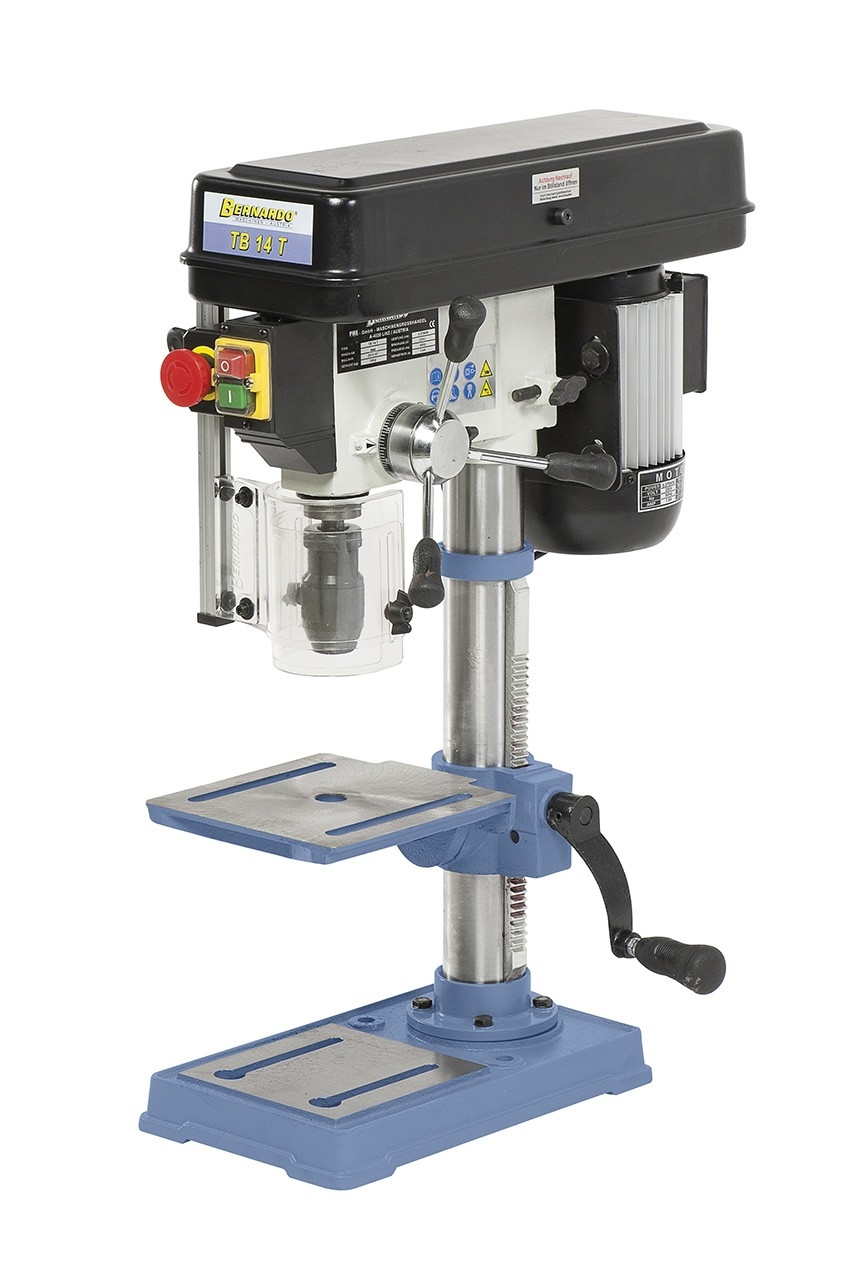

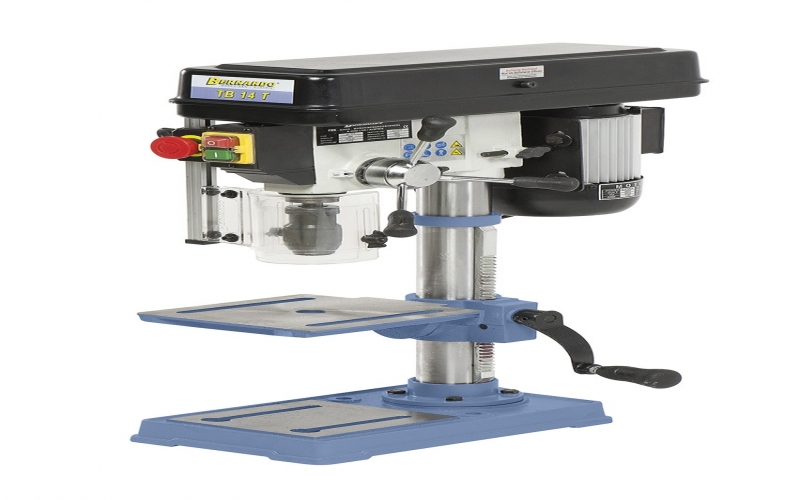

TB 14 T
The inexpensive bench drilling machine TB 14 T, featuring a V-belt drive, is available with a drilling capacity of 14 mm. The height adjustable protective cover developed by Bernardo cover the drill as well as the drill chuck completely. This increase the safety and making them particulary suitalbe for craftsmen and training purposes
Drilling capacity max. 14 mm
Drill chuck 1 - 13 mm / B 16
Morse taper steady / B 16
Spindle speeds (5) 620 - 2620 rpm
Distance spindle to column 130 mm
Table tiltable -45° to +45°
Distance spindle to table max. 285 mm
Distance spindle to base 395 mm
Spindle stroke 65 mm
Column diameter 58 mm
Table size / T-slot size 185 x 185 mm / 14 mm
Working surface of base 155 x 155 mm
Motor power output S1 100% 0,37 kW / 230 V
Motor power input S6 40% 0,55 kW / 230 V
Machine dimension (W x D x H) 300 x 510 x 690 mm
Weight approx. 26 kg


Features
  • High-quality ball bearings ensure high spindle concentricity
  • Balanced drive wheels and high-quality belt ensure extremely smooth operation
  • Drill table swivels (±45°), height adjustable via gear rack
  • Complete with T-slots in polished base plate
  • Powerful, high-torque aluminium motor in accordance with IP 54
  • Ergonomically arranged handles ensure high work comfort
  • Treated base plate allows clamping of oversize work pieces
  • Top precision keyless drill chuck included

Standard accessories:
  • Keyless drill chuck 1 - 13 mm / B 16
  • Height adjustable protective cover
  • Separate emergency stop switch
  • T-slot nuts
  • Tools

Optional accessories:
  • Drilling machine vise BM 100 with prismatic jaws (Art.Nr.:28-1999)
  • Drilling machine vise BM 125 with prismatic jaws (Art.Nr.:28-2000)
  • Drilling machine vise BMO 85 with prismatic jaws (Art.Nr.:28-2006)
  • 19 pcs. set TiN-coated HSS drills, 1 - 10 mm (Art.Nr.:41-1000)
  • 25 pcs. set TiN-coated HSS drills, 1 - 13 mm (Art.Nr.:41-1010)
  • 50 pcs. set TiN-coated HSS drills, 1 - 5,9 mm (Art.Nr.:41-1015)
  • 130 pcs. set TiN-coated HSS drills (Art.Nr.:41-1024)
  • 170 pcs. set TiN-coated HSS drills (Art.Nr.:41-1025)

TB 16 T
The inexpensive bench drilling machine TB 16 T, featuring a V-belt drive, is available with a drilling capacity of 16 mm. The height adjustable protective cover developed by Bernardo cover the drill as well as the drill chuck completely. This increases the safety and making them particulary suitable for craftsmen and training purposes.
Drilling capacity max. 16 mm
Drill chuck 1 - 16 mm / B 16
Morse taper MT 2
Spindle speeds (12) 300 - 2550 rpm
Distance spindle to column 155 mm
Table tiltable -45° to +45°
Distance spindle to table max. 445 mm
Distance spindle to base 600 mm
Spindle stroke 65 mm
Column diameter 58 mm
Table size / T-slot size 245 x 245 mm / 16 mm
Working surface of base 185 x 200 mm
Motor power output S1 100% 0,55 kW / 230 V
Motor power input S6 40% 0,80 kW / 230 V
Machine dimension (W x D x H) 400 x 570 x 920 mm
Weight approx. 36 kg


Features
  • High-quality ball bearings ensure high spindle concentricity
  • Large drill table features diagonal T-slots
  • Balanced drive wheels and high-quality belt ensure extremely smooth operation
  • Drill table swivels (±45°), height adjustable via gear rack
  • Complete with T-slots in polished base plate
  • Powerful, high-torque aluminium motor in accordance with IP 54
  • Ergonomically arranged handles ensure high work comfort
  • Treated base plate allows clamping of oversize work pieces
  • Top precision keyless drill chuck included

Standard accessories:
  • Keyless drill chuck 1 - 16 mm / B 16
  • Drill chuck arbor MT 2 / B 16
  • Height adjustable protective cover
  • Separate emergency stop switch
  • T-slot nuts
  • Tools

Optional accessories:
  • Drilling machine vise BM 100 with prismatic jaws (Art.Nr.:28-1999)
  • Drilling machine vise BM 125 with prismatic jaws (Art.Nr.:28-2000)
  • Drilling machine vise BMO 85 with prismatic jaws (Art.Nr.:28-2006)
  • 19 pcs. set TiN-coated HSS drills, 1 - 10 mm (Art.Nr.:41-1000)
  • 25 pcs. set TiN-coated HSS drills, 1 - 13 mm (Art.Nr.:41-1010)
  • 50 pcs. set TiN-coated HSS drills, 1 - 5,9 mm (Art.Nr.:41-1015)
  • 130 pcs. set TiN-coated HSS drills (Art.Nr.:41-1024)
  • 170 pcs. set TiN-coated HSS drills (Art.Nr.:41-1025)

TB 20 T
The TB 20 T is a cost efficient table drilling machine with V-belt drive available with 230 V or 400 V. The great price to performance ratio makes this model an attractive choice for hobby craftsmen.
Drilling capacity max. 20 mm
Drill chuck 1 - 16 mm / B 16
Morse taper MT 2
Spindle speeds (16) 180 - 2770 rpm
Distance spindle to column 180 mm
Table tiltable -45° to +45°
Distance spindle to table max. 415 mm
Distance spindle to base 605 mm
Spindle stroke 80 mm
Column diameter 72 mm
Table size / T-slot size 290 x 290 mm / 16 mm
Working surface of base 205 x 205 mm
Motor power output S1 100% 0,55 kW / 230 V
Motor power input S6 40% 0,80 kW / 230 V
Machine dimension (W x D x H) 380 x 620 x 1000 mm
Weight approx. 54 kg


Features
  • High quality ball bearings allow for high concentricity measured at spindle
  • Large drill table features diagonal T-slots
  • Drill table tilts (±45°), height adjustment via gear rack
  • Powerful, high-torque aluminium motor according to IP 54 standard
  • High grade keyless drill chuck comes standard
  • Treated machine base allows clamping of oversize workpieces
  • Features T-slots on polished base
  • Ergonomical handles allow for high work comfort

Standard accessories:
  • Keyless drill chuck 1 - 16 mm / B 16
  • Drill chuck arbor MT 2 / B 16
  • Height adjustable protective cover
  • Separate emergency stop switch
  • T-slot nuts
  • Tools

Optional accessories:
  • Drilling machine vise BM 125 (Art.Nr.:28-2000)
  • 19 pcs. set TiN-coated HSS drills, 1-10 mm (Art.Nr.:41-1000)
  • 25 pcs. set TiN-coated HSS drills, 1-13 mm (Art.Nr.:41-1010)
  • 50 pcs. set TiN-coated HSS drills, 1-5,9 mm (Art.Nr.:41-1015)
  • 130 pcs. set TiN-coated HSS drills (Art.Nr.:41-1024)
  • 170 pcs. set TiN-coated HSS drills (Art.Nr.:41-1025)

TB 20 T 400V
The TB 20 T is a cost efficient table drilling machine with V-belt drive available with 230 V or 400 V. This model comes complete with right and left turning device. The great price to performance ratio makes this model an attractive choice for hobby craftsmen.
Drilling capacity max. 20 mm
Drill chuck 1 - 16 mm / B 16
Morse taper MT 2
Spindle speeds (16) 180 - 2770 rpm
Distance spindle to column 180 mm
Table tiltable -45° to +45°
Distance spindle to table max. 415 mm
Distance spindle to base 605 mm
Spindle stroke 80 mm
Column diameter 72 mm
Table size / T-slot size 290 x 290 mm / 16 mm
Working surface of base 205 x 205 mm
Motor power output S1 100% 0,55 kW / 230 V
Motor power input S6 40% 0,80 kW / 230 V
Machine dimension (W x D x H) 380 x 620 x 1000 mm
Weight approx. 54 kg


Features
  • High quality ball bearings allow for high concentricity measured at spindle
  • Large drill table features diagonal T-slots
  • Drill table tilts (±45°), height adjustment via gear rack
  • Rotation switch for right and left turn
  • Powerful, high-torque aluminium motor according to IP 54 standard
  • High grade keyless drill chuck comes standard
  • Treated machine base allows clamping of oversize workpieces
  • Features T-slots on polished base
  • Ergonomical handles allow for high work comfort

Standard accessories:
  • Keyless drill chuck 1 - 16 mm / B 16
  • Drill chuck arbor MT 2 / B 16
  • Height adjustable protective cover
  • Separate emergency stop switch
  • Left and right turning
  • T-slot nuts
  • Tools

Optional accessories:
  • Drilling machine vise BM 125 (Art.Nr.:28-2000)
  • 19 pcs. set TiN-coated HSS drills, 1-10 mm (Art.Nr.:41-1000)
  • 25 pcs. set TiN-coated HSS drills, 1-13 mm (Art.Nr.:41-1010)
  • 50 pcs. set TiN-coated HSS drills, 1-5,9 mm (Art.Nr.:41-1015)
  • 130 pcs. set TiN-coated HSS drills (Art.Nr.:41-1024)
  • 170 pcs. set TiN-coated HSS drills (Art.Nr.:41-1025)


BM 20 T
The solid drilling machine featuring vario drive is characterized by high torque even at low speed. Most commonly this model is used by amateurs and for training purposes.
Drilling capacity max. 20 mm
Drill chuck 1 - 16 mm / B 18
Morse taper MT 2
Spindle speeds 400 - 1950 rpm
Distance spindle to column 180 mm
Table tiltable -45° to +45°
Distance spindle to table max. 415 mm
Distance spindle to base 605 mm
Spindle stroke 80 mm
Column diameter 72 mm
Table size / T-slot size 305 x 305 mm / 16 mm
Working surface of base 205 x 205 mm
Motor power output S1 100% 0,75 kW / 230 V
Motor power input S6 40% 1,1 kW / 230 V
Machine dimension (W x D x H) 400 x 630 x 990 mm
Weight approx. 57 kg


Features
  • Digital display allows easy readout of set speed or spindle stroke
  • Grey cast iron pulley ensures smooth operation
  • High-quality ball bearings guarantee high concentricity
  • Large drill table features diagonal T-slots
  • Drill table tilts (±45°) – gear rack allows height adjustment
  • Powerful, high performance aluminium motor in accordance with IP 54 standards
  • Precise keyless drill chuck comes as part of the standard accessories
  • Complete with T-slots in polished base plate
  • Ergonomically designed handles maximises work comfort

Standard accessories:
  • Keyless drill chuck 1 – 16 mm / B 18
  • Drill chuck arbor MT 2 / B 18
  • Digital spindle stroke indication
  • Digital readout of speed
  • Cross line laser device
  • T-slot nuts
  • Height adjustable protective cover
  • Separate emergency stop switch
  • Tools

Optional accessories:
  • Drilling machine vice BM 150 (Art.Nr.:28-2001)
  • Drilling machine vice BMH 150 (Art.Nr.:28-2012)
  • Deluxe clamping kit set 58 pcs., 16 mm, M 14 (Art.Nr.:28-1002)
  • 25 pcs. set TiN-coated HSS drills, 1 - 13 mm (Art.Nr.:41-1010)
  • 170 pcs. set TiN-coated HSS drills (Art.Nr.:41-1025)
